ECP1000 2EV U

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE 2 EVAPORATING UNITS

POWER AND ELECTRONIC CONTROL PANELS TO MANAGE 2 EVAPORATING UNITS
POWER AND ELECTRONIC CONTROL PANELS TO MANAGE 2 EVAPORATING UNITS

    A line of power and electronic control panels to manage 2 three-phase evaporating units where devices are served by a compressor rack.

    Brochure Download
    Download Instruction Manual
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE 2 EVAPORATING UNITS
    POWER AND ELECTRONIC CONTROL PANELS TO MANAGE 2 EVAPORATING UNITS
      Application

      • Control of 2 evaporating units with electrical defrost up to 9 kw.

      Main characteristic
      • Enabling for 2 condensing units, 2 defrosting elements, 2 evaporator fans, 2 solenoid valves, room light and all standard-compliant electrical safeguards.
      • Compact, self-extinguishing ABS housing with IP65 protection rating and circuit breaker on front of panel.
      • Control electronics with large backlit LCD and user-friendly keypad.
      • LED system status indicators.
      • RS485 for connection to TeleNET industrial supervision network or Modbus-RTU standard protocol.
      Properties
      Dimension
      ECP1000 2EV U
      350x450x160 mm
      Weight
      ECP1000 2EV U
      10kg
      Front protection rating
      ECP1000 2EV U
      IP 65
      Power supply
      ECP1000 2EV U
      400 VAC ±10% 50/60 Hz
      Status indicator
      ECP1000 2EV U
      Led + Display
      Load type
      ECP1000 2EV U
      Three phase
      Working temperature
      ECP1000 2EV U
      -5 ÷ +50 °C
      Storage temperature
      ECP1000 2EV U
      -10 ÷ +70°C
      Relative ambient humidity
      ECP1000 2EV U
      30% - 90% RH without condensate
      Reading range
      ECP1000 2EV U
      -45 ÷ +45 °C
      Door lock main switch
      ECP1000 2EV U
      40 A
      General protection
      ECP1000 2EV U
      Fuses
      Control
      ECP1000 2EV U
      Pego
      Alarm signals
      ECP1000 2EV U
      Led + Buzzer
      Defrosting
      ECP1000 2EV U
      Electrical
      Insulation transformer
      ECP1000 2EV U
      Present
      Ambient probe
      ECP1000 2EV U
      NTC 10 kΩ
      Evaporator probe 1
      ECP1000 2EV U
      NTC 10 kΩ
      Evaporator probe 2
      ECP1000 2EV U
      NTC 10 kΩ
      Door switch
      ECP1000 2EV U
      Present
      Defrosting heaters 1
      ECP1000 2EV U
      9000W
      Defrosting heaters 2
      ECP1000 2EV U
      9000W
      Evaporator fans 1
      ECP1000 2EV U
      1500W (1 PH)
      Evaporator fans 2
      ECP1000 2EV U
      1500W (1 PH)
      Solenoid valve 1
      ECP1000 2EV U
      Present
      Enable condensing unit
      ECP1000 2EV U
      Present
      Room light
      ECP1000 2EV U
      800W (AC1) resistive load
      Alarm/AUX relay
      ECP1000 2EV U
      Present
      Supervision
      ECP1000 2EV U
      TeleNet / Modbus-RTU

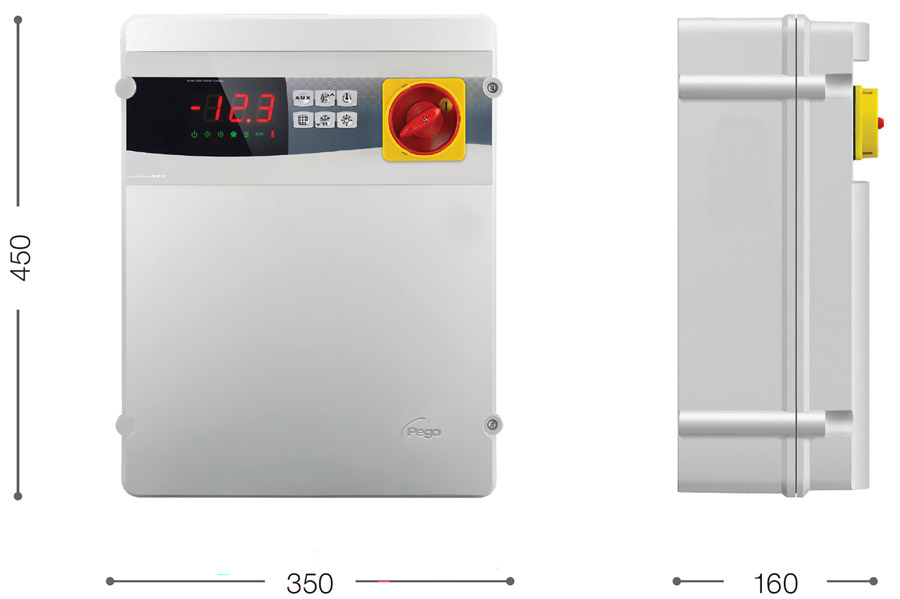

      Dimension
      ECP1000 2EV U
      ECP1000 2EV U
      Connection Scheme
      ECP1000 2EV U
      ECP1000 2EV U
      Technical Characteristics
      Inputs
      Outputs
      Dimensions and Diagram
      Available Versions
      ECP1000 2EV U
      Product Code
      11210002EV01
      Compressor
      Product Code
      11210002EV01
      No
      Evaporator fan
      Product Code
      11210002EV01
      1,5 kW
      Defrosting
      Product Code
      11210002EV01
      9,0 kW
      Electronic expansion valve
      Product Code
      11210002EV01
      No
      Man in cold-room alarm
      Product Code
      11210002EV01
      No
      Complete cold room management
      Product Code
      11210002EV01
      No
      Condensing unit management
      Product Code
      11210002EV01
      No
      Temperature/Humidity Management
      Product Code
      11210002EV01
      No
      Evaporating unit management
      Product Code
      11210002EV01
      Yes
      Double system management
      Product Code
      11210002EV01
      No
      Valve management electronic on/off
      Product Code
      11210002EV01
      No
      Valve management Stepper electronics
      Product Code
      11210002EV01
      No
      Double evaporator management
      Product Code
      11210002EV01
      Yes
      Datalogger
      Product Code
      11210002EV01
      No
