APE GLD
APE GLD
    Trapped person and gas detector alarm kit for cold rooms consisting of control unit with audible / visual signal, buffer battery, luminous emergency button, gas sensor and audible / visual signal for inside the cold room. The Kit allows to report a person trapped in the cold room and activates a gas leak pre-alarm or alarm (CO2, R290, etc.) The system is designed to work even in the event of a temporary power failure thanks to a buffer battery located in the external unit.
    Brochure download
    APE GLD
      Accessories
      Applications
      • Trapped person alarm systems for cold rooms
      • Gas leak alarm systems for cold rooms and technical compartments
      Main Characteristics
      • Learn moreCompliant with Standard UNI EN 378-1 applicable to negative temperature cold rooms with a volume greater than 10 m3.
      • Learn moreEmergency push-button panel to be installed inside the cold room. It consists of a luminous mushroom-shaped button with a N.C. contact. The mushroom-shaped button is permanently lit by means of a LED so that it can be located even in the dark. Up to 4 buttons can be connected
      • Learn moreRechargeable buffer battery with battery level and performance indicators

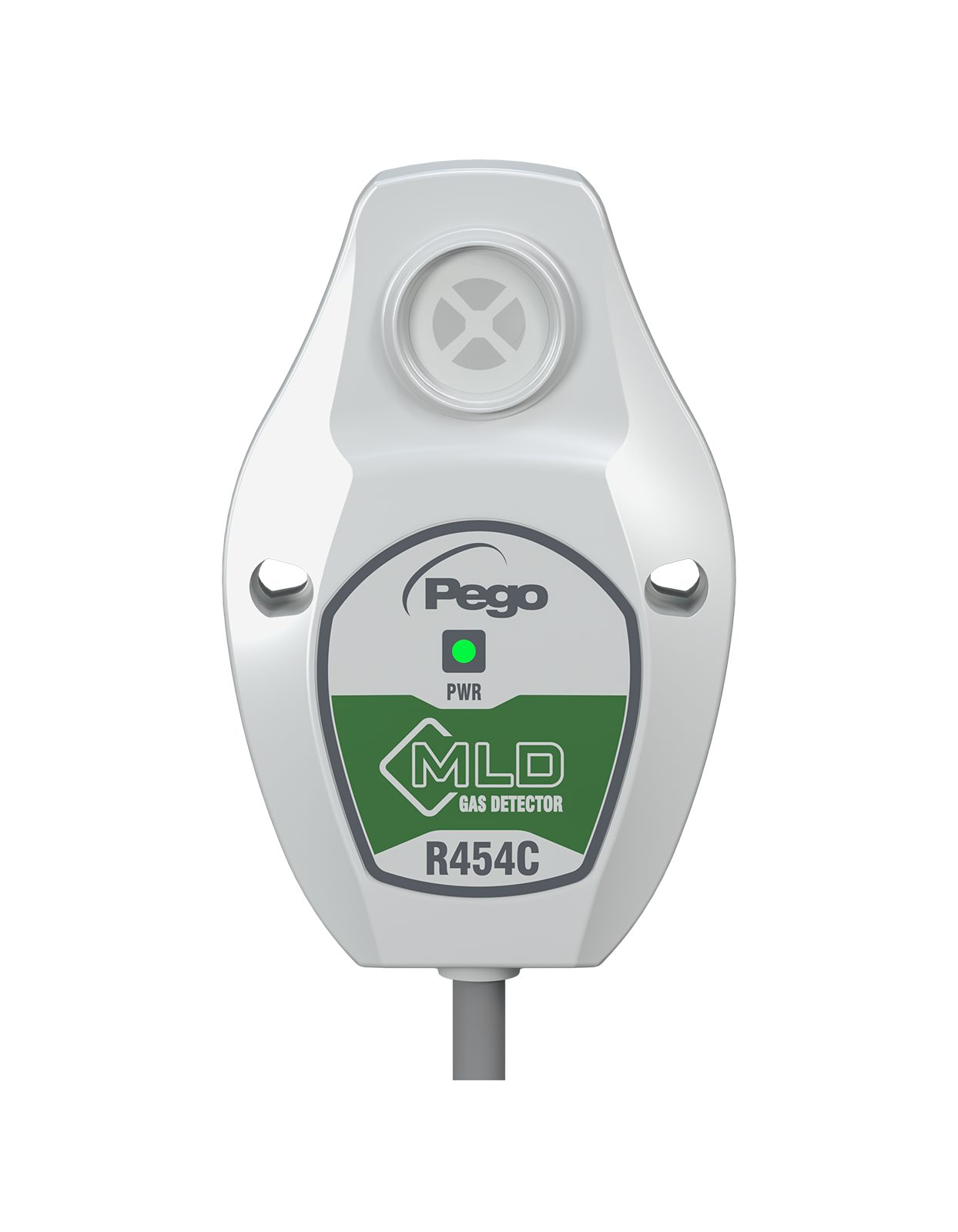

      • Learn moreGas leak detection sensor to be installed inside the cold room with separate pre-alarm and gas alarm signals. Up to 4 gas sensors can be connected
      • Learn moreCan be connected to third-party gas leak sensors with RS485 serial
      • Learn moreGas alarm silencing for the management of periodic calibration checks
      • Learn moreAudible / visual signal for gas leaks to be installed inside the cold room in accordance with EN 378-3

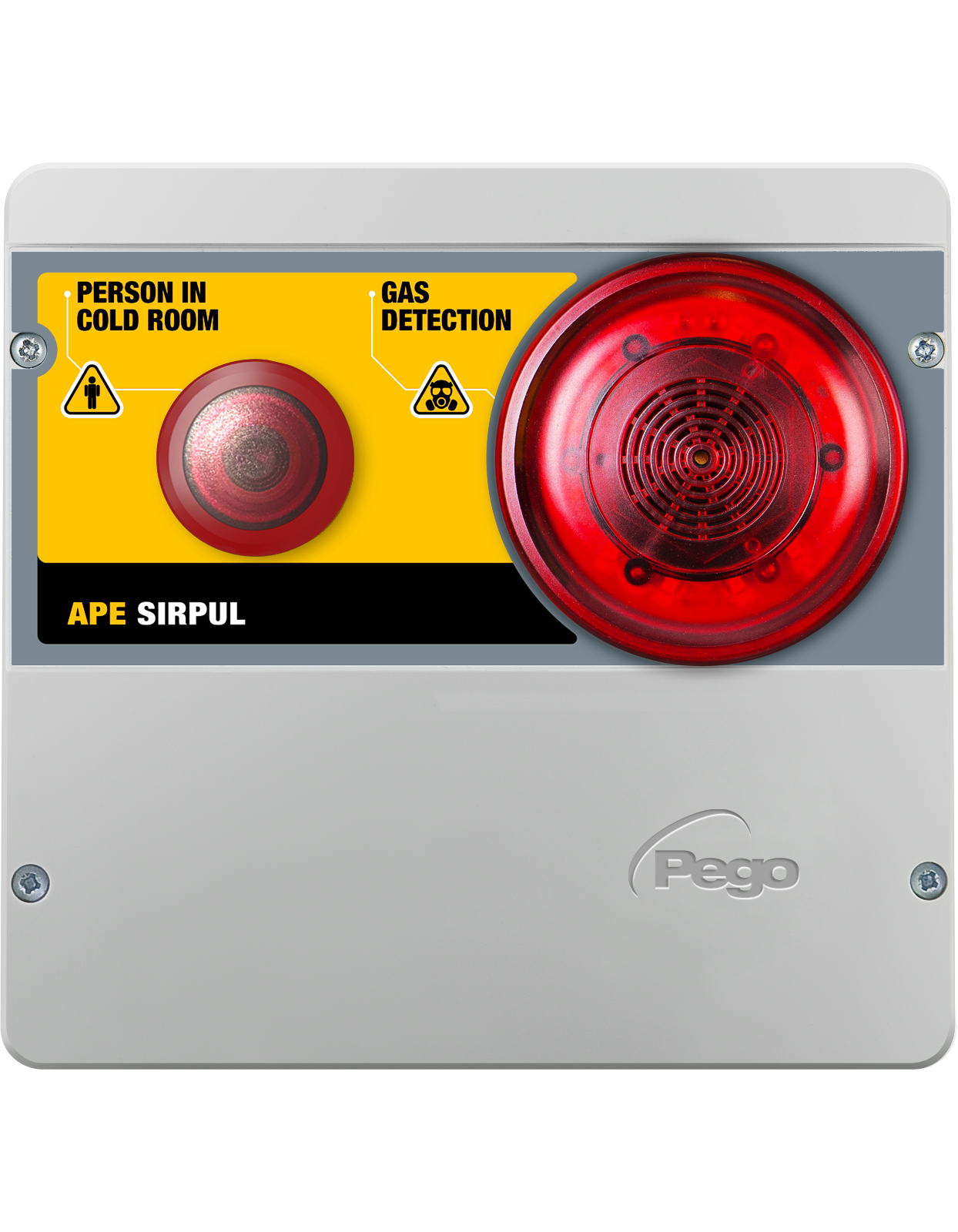

      • Learn moreAudible / visual alarm management control unit to be installed outside the cold room. It is equipped with a siren and a flashing light to report the alarm and a buffer battery in the event of a power failure. There is also a clean contact (closed with active alarm) which can be used to activate a remote alarm signal.
      • Learn moreProgramming via Bluetooth with MyPego APP
      • Learn moreRS-485 serial with ModBUS-RTU protocol
      Properties
      Dimension
      APE GLD
      203x193x79 mm
      Weight
      APE GLD
      3kg
      Power supply
      APE GLD
      230 VAC 50/60 Hz
      Max consuption on main power supply
      APE GLD
      10 VA
      Battery
      APE GLD
      12 VDC Ni-MH 1300 mAh Tempo di ricarica completo: 10 h
      Autonomy
      APE GLD
      10 h (con batteria carica)
      Working temperature
      APE GLD
      -5 ÷ +45°C
      Acoustic characteristics
      APE GLD
      Type: piezoelectric Sound power: 90 dB at 1m
      Visual warning
      APE GLD
      Red flashing led 12 VDC
      Relè allarme / AUX
      APE GLD
      N° 2 5A AC1 (SPDT)
      Supervision
      APE GLD
      TeleNet / Modbus-RTU
      Serial
      APE GLD
      Modbus-RTU
      Bluetooth
      APE GLD
      BLE con app myPego
      Working temperature
      APE GLD
      -5 ÷ +45°C
      Front protection rating
      APE GLD
      IP 65

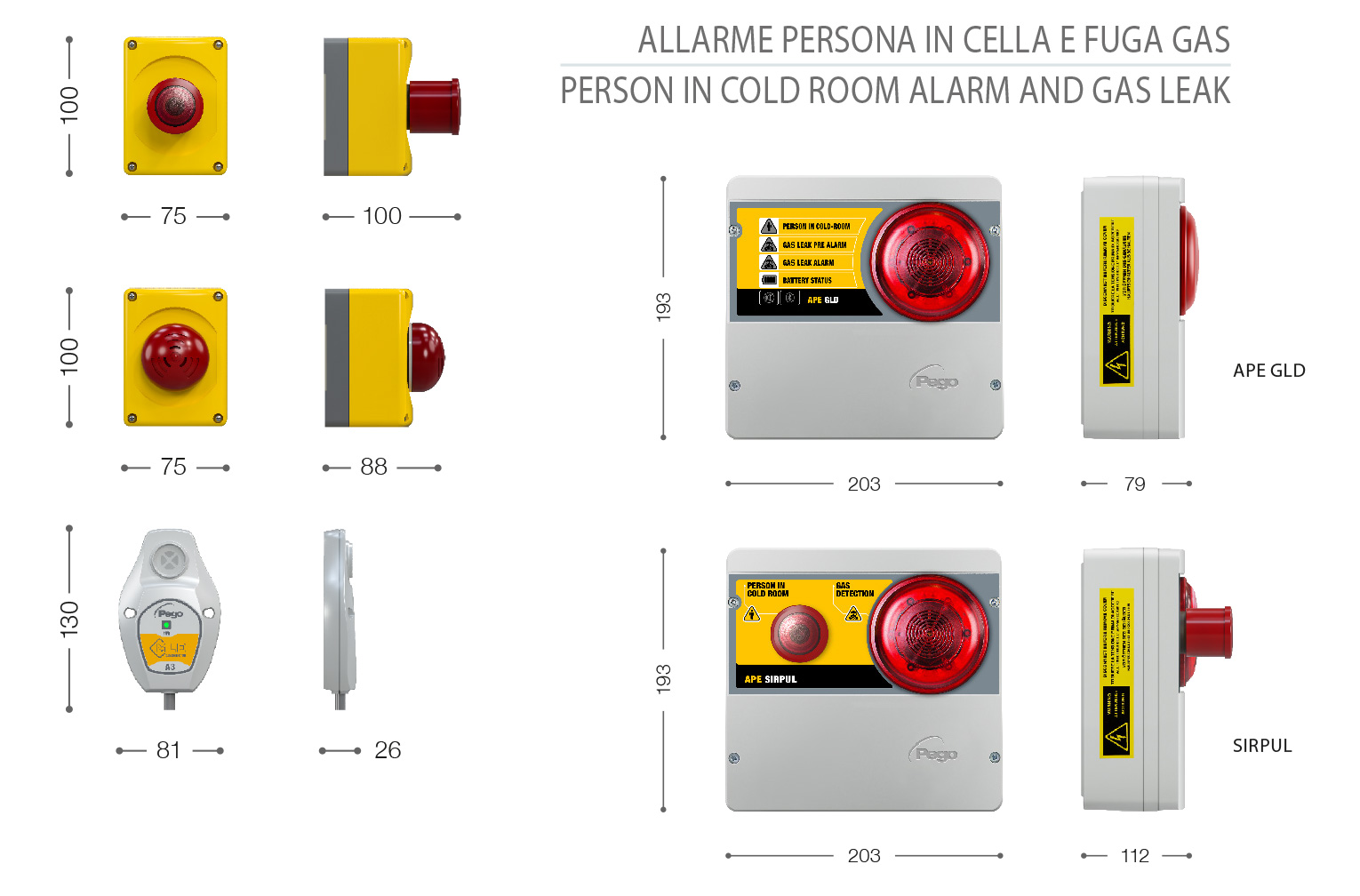

      Dimension
      APE GLD
      APE GLD

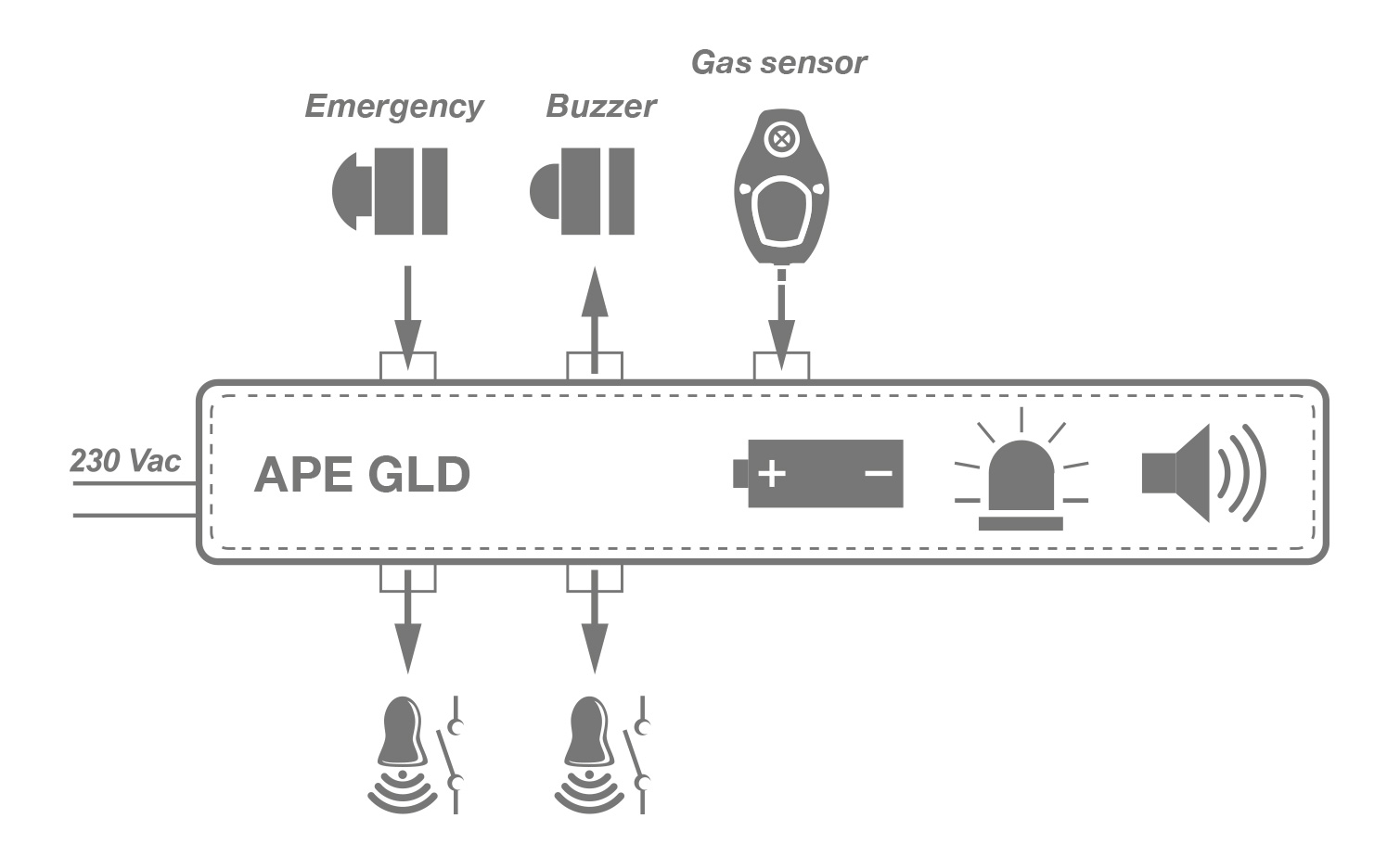

      Connection Scheme
      APE GLD
      APE GLD
      Technical Characteristics
      Outputs
      Connectivity
      Ambient Condition
      Insulation And Mechanical Characteristics
      Dimensions and Diagram
